Soundtraxx 885003 HO & N Scale Tsunami 2 TSU 1100 - 9 Pin PNEM Digital Sound Decoder for Alco Diesel Models
SKU: 678-885003
Tsunami 2 TSU 1100 - 9 Pin PNEM Digital Sound Decoder for Alco Diesel Models
Tsunami 2 TSU-pnem Digital Sound Decoder for Baldwin & Other Diesels Sounds

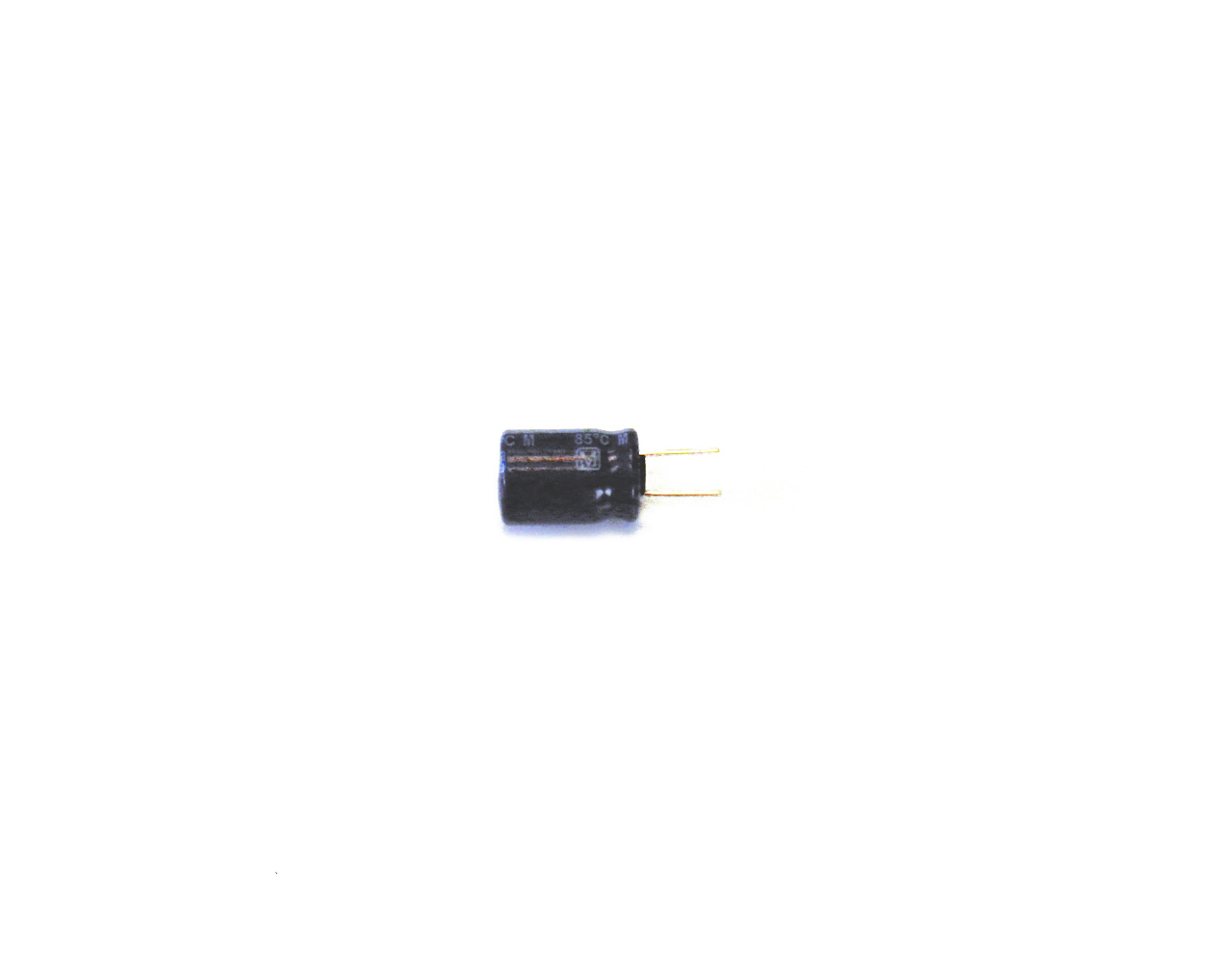

- comes with capacitor that can be wired to a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches.
HO & N Scale
1-1/16 x 13/32 x 3/16 inches - 27 x 10.5 x 5mm
Prime Movers -
- ALCO 539 Turbo, ALCO 251C v12 Super Charged, ALCO 539 Non-Turbo, ALCO 251C v12 Century Series, ALCO 244 Turbo, ALCO 251C v16, ALCO 251A i6, ALCO 251C v16 Super Charged, ALCO 251C v12
9 Pin board
The TSU-PNEM is a 9 Pin sound decoder suitable for use in many manufacturers models such as those made by Atlas Athearn and InterMountain Models. It is suitable for a wide variety of models from HO to S scale.
Dimensions: 30.5 x 15.5 x 6.5mm
Max. Motor Stall Current: 1A
Function Outputs: 4
Max. Function Current: 100mA (each output)
Audio Amplifier: 2 Watts, 8-Ohm Load
DCC Track Voltage: 7.5V – 22V
16-bit Digital Sound
1A Motor Stall Current
Over 50 Sound Effects with Selectable Reverb
Functioning Engine, Train and Dynamic Brakes
Reactive Dynamic Digital Exhaust
6 Function Outputs with over 20 Hyperlight Effects
Hyperdrive2 Advanced Motor Control
DCC Track Voltage 7.5V – 22V
No speaker included
