Soundtraxx 881006 21pin Econami Sound Decoder for Steam
SKU: 678-881006

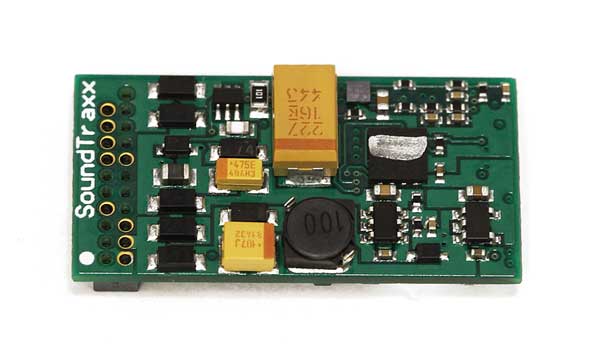

21-PIN Econami Sound Decoder for Steam
This 2-amp, universal-style digital sound decoder is suitable for a wide variety of models from HO to S scale, and includes a connector to easily add a CurrentKeeper (P.N. 810140) to maintain performance over dirty track and switches
Features
Dimensions: 73.7 x 16.8 x 4.8mm
Max. Motor Stall Current: 2A
Function Outputs: 6
Max. Function Current: 100mA (each output)
Audio Amplifier: 2W, 8-Ohm Load
DCC Track Voltage: 10V 22V
Operates on DCC and DC layouts
Econami decoders for steam locomotives include a selection of four popular exhaust chuffs and 16 whistles to accommodate a number of models. The steam Econami features over 90 sound effects, including:
8 Exhaust Chuff Selections (2-cylinder or articulated)
Light Steam, Medium Steam, Heavy Steam and Geared Steam
6 Bells
Heavy Brass, Light Brass, Medium Brass 1, Medium Brass 2, Light Steel and Air-Rung Heavy Brass
16 Whistles
Lunkenheimer Flat Top 3-Chime, Hancock Step Top 3-Chime , Baldwin Single-Chime (5”) , B&M Step Top 5-Chime, ATSF Step Top 6-Chime, B&O Step Top 3-Chime, Nathan Step Top 5-Chime (D&RGW #488)
SP Step Top 6-Chime, Southern Flat Top 3-Chime (PS4), Round Top Single-Chime (Peanut), Reading 6-Chime, SP GS-4 #4449, N&W Step Top 3-Chime (Class J #611), N&W Flat Top Single-Chime (Class A), Leslie A200 Airhorn (SP GS/AC Classes)
4 Airpumps
Single-Phase, Cross-Compound, Dual Single-Phase and Dual Cross-Compound
4 Dynamos
3 Couplers
Medium, Heavy, Link-and-Pin
Cylinder Cocks
Blower , Blowdown , Rod Clank , Johnson Bar , Emergency Brake Application, and Brake Squeal/Release
